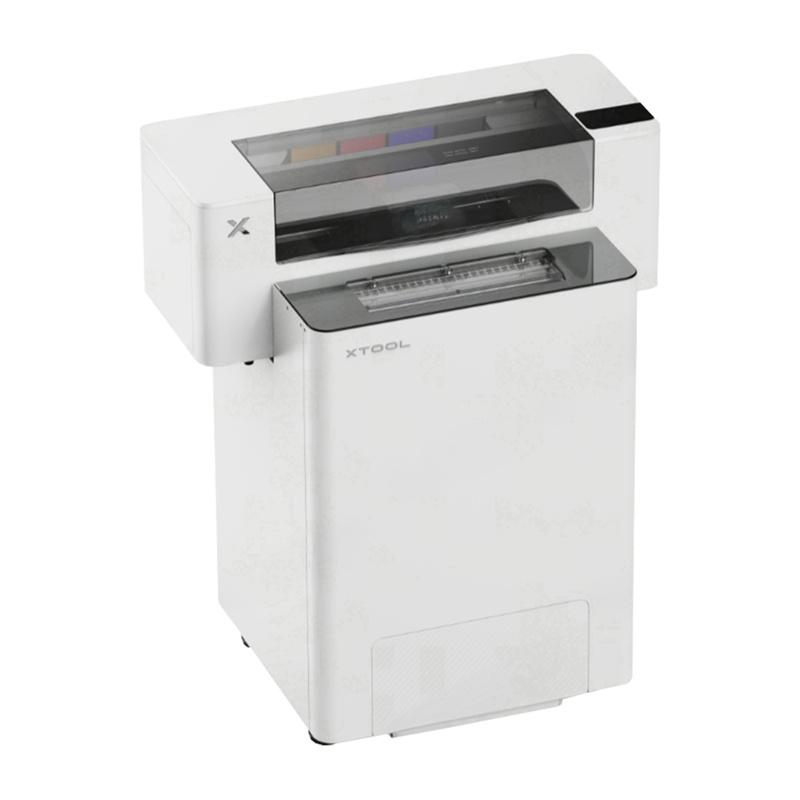

xTool Apparel Printer - all-in-one kit

The xTool Apparel Printer is an advanced apparel printer designed for professional use in the textile and advertising industry. It can produce permanent, full-color prints on all types of fabrics - from cotton and polyester, to denim and canvas, to spandex, nylon or leather. Unlike sublimation and screen printing, it also allows printing on dark materials, guaranteeing vivid colors and sharp details. The all-in-one kit also includes equipment to support the entire printing and fixing process - the OS1 Automatic Shaker Oven Machine for automatic application and fixing of adhesive powder, and the SafetyPro™ AP2 Air Purifier, an air purifier for removing dust and odors when working with laser and thermal equipment.

A woman uses a heat transfer press to print a

Industry-level performance

The printer achieves impressive production speeds - in an hour it can apply 440 3" × 3" prints with 4 passes or 26 large 12" × 8" designs with 6 passes. This makes the machine suitable for both small, personalized orders and mass production of garments. The width of the working area is 356 mm (14"), which also allows printing large designs in full T-shirt format.

A woman applies a colorful heart-shaped print to a white T-shirt using a heat press

Latest printing technology

The device uses a dual Epson I1600 (3rd generation, 2023) print head - one is responsible for color and the other for white ink. The resolution of 720 × 1800 DPI (Dots Per Inch, the number of print dots per inch) and ultra-fine droplets of 3.8 pL (picoliters, the unit of ink volume) guarantee the highest sharpness and even coverage. Thanks to the dual system, the heads are more resistant to clogging and last up to twice as long as in older solutions.

Two black and white baseball shirts printed with

Professional quality

The device is calibrated to the G7 Certified standard, which means perfect color and tonality reproduction. Colors seen on the computer screen are faithfully transferred to the fabric, and prints remain crisp even after many washings. The printer provides HD (High Definition, high resolution) prints with full screen-to-print color consistency.

A man wearing a white T-shirt with a large print of

Intelligent support

A built-in 16 MP AI (Artificial Intelligence) camera automatically calibrates heads, performs print tests and detects nozzle clogs. In addition, the software uses artificial intelligence to improve the quality of images - it increases the resolution of blurry graphics, generates designs based on text and optimizes the layout of elements on the sheet, saving ink and material.

A woman works with a color print at a modern printer in a clothing workshop

Reliable printing process

The xTool Apparel Printer automatically uses a unique "Print-to-Bake" process. It involves four steps: printing, adhesion powder application, even distribution and baking (curing). As a result, prints are flexible, resistant to abrasion and retain vivid colors for a long time, giving it an advantage over sublimation or screen printing.

A woman wearing a red T-shirt with a soccer print and the words

Intuitive software

The xTool Creative Space software replaces external RIP (Raster Image Processor) tools. It allows you to edit designs, prepare mockups, nesting and control printing parameters in one environment. The intuitive interface makes operation simple for both novice and experienced operators.

A woman puts a bag with

Automatic maintenance and monitoring

The SmartCycle™ system runs continuously, taking care of head cleanliness, white ink circulation and proper hydration. The xTool Apparel Printer is thus always ready to go, and you can monitor its status in real time from the mobile app.

A printer next to folded clothes and a cap printed with

All-in-one kit

The all-in-one kit includes two specialized devices that support the entire apparel production process. The OS1 Automatic Shaker Oven Machine automates the application and curing stages of adhesive powder - with double-sided operation, a compact design and a powder recycling system for maximum efficiency and material savings. The SafetyPro™ AP2 Air Purifier, on the other hand, is an air purifier designed to effectively remove dust and odors generated during laser and thermal equipment operation, resulting in a safe and clean working environment.

A person in jeans and black sneakers with colorful

Included:

Garment printer
Automatic powder application and fixation station (OS1 Automatic Shaker Oven Machine)
Air purifier (SafetyPro™ AP2 Air Purifier)
Film holder
25m film roll
Mounting bracket x2
Tray
Ink 500 ml x5
Wetting fluid 500 ml
Power cable 1.8 m
USB cable (Universal Serial Bus, a universal connector for data transfer and power supply)
Liquid dispenser x5
Screwdriver
M4*16 screw x5
Cleaning fluid 100 ml
Pipette x2
Cleaning sticks x5
Hose
Cleaning cloth
Print head protection container x2
Oil
Plastic bag x2
Quick start guide
Maintenance instructions
Safety instructions
Basic guidelines

Manufacturer	xTool
Model	XAP-AIO
Printer dimensions	905 × 365 × 356.5 mm
Printer weight	34 kg
Dimensions of the automatic heating station (Shaker Oven)	635 × 587.93 × 927.78 mm
Printing width	356 mm (14")
Supported materials	All fabrics: cotton, polyester, denim, canvas, spandex, nylon and others
Printhead	Epson I1600 Dual Print Head (3rd generation)
Print resolution	720 × 1800 DPI
Minimum ink droplet size	3.8 pL
Printing speed	approx. 4.65 m²/h (at 720 × 1200 DPI)
Printing mode	single-sheet feeding
Print colors	CMYK + WW (white ink)
Supported software	xTool Creative Space (AI Design, RIP, Auto Nesting, Layout, machine control)
System compatibility	Windows, macOS
Calibration	AI 16 MP camera - automatic calibration
Maintenance system	automatic head cleaning, ink circulation, WIMS (White Ink Management System), automatic head humidifier refill, remote monitoring via app
Printer power supply voltage	AC 100V-120V / 220V-240V
Printer power supply frequency	50 Hz / 60 Hz
Printer power consumption	350 W
Power consumption in sleep mode	23.5 W, approximately 0.5 kWh per day
Operating temperature range	15-30°C (recommended 20-30°C)
Operating humidity range	30%-80% RH (Relative Humidity, recommended 50%-80% RH)
