Uni-T UT675A Battery Tester
In stock

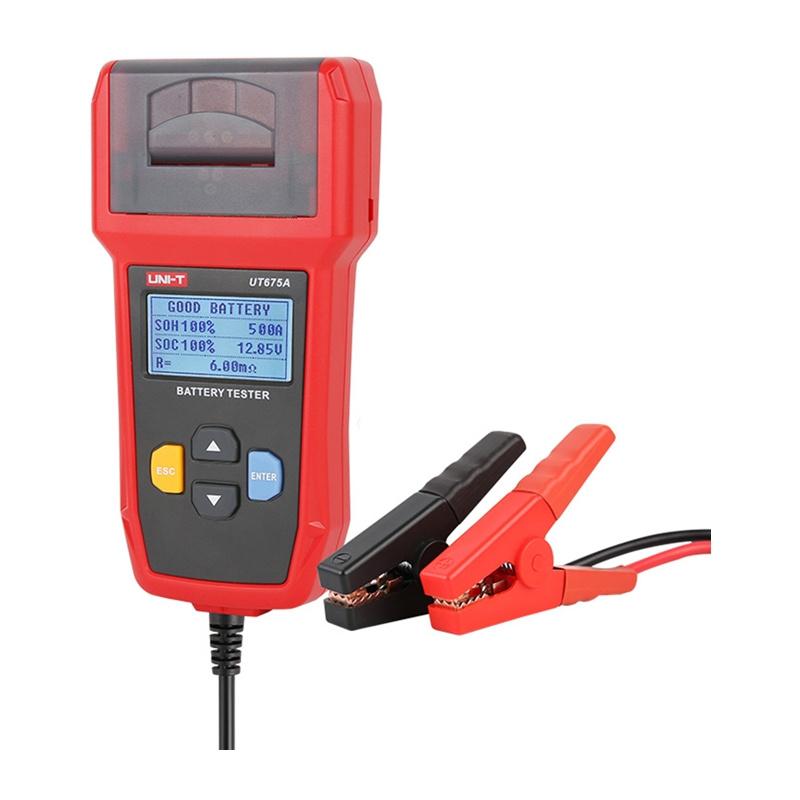

Uni-T UT675A battery tester
The Uni-T UT675A is a tester designed for the rapid diagnosis of automotive batteries and vehicle electrical systems without the need to remove the battery. The device supports lead-acid batteries with capacities ranging from 3 Ah to 250 Ah, including AGM, GEL, and EFB models, making it suitable for use in many types of vehicles. It enables the measurement of voltage and internal resistance, as well as the assessment of battery capacity and condition, allowing for the quick detection of potential issues. Additionally, the tester performs starting and charging system tests for 12 V and 24 V systems, expanding the diagnostic capabilities. The built-in printer and USB connectivity allow for the creation and archiving of measurement reports, which facilitates the documentation of results and daily work in a workshop or service center.
Included
- Battery tester
- USB cable
- Thermal paper roll (for printer)
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT675A |
| Product type | Battery tester with built-in printer |
| Battery voltage testing range | 7–16 V DC |
| Starting system test | 12 V / 24 V |
| Charging system test | 12 V / 24 V |
| Supported battery types | Lead-acid, AGM, GEL, EFB |
| Battery capacity range | 3–250 Ah |
| Test standards | CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, AH |
| Measured parameters | Voltage, resistance, capacity, cycle life |
| Connectivity | USB |
| Built-in printer | Yes |
| Display type | 128 × 64 LCD display |
| Power supply | From the tested vehicle battery |
| Dimensions | 95 × 47 × 183 mm |
| Weight | 413 g |
| Certifications | CE, UKCA, FCC |
Product description
Uni-T UT675A battery tester
The Uni-T UT675A is a tester designed for the rapid diagnosis of automotive batteries and vehicle electrical systems without the need to remove the battery. The device supports lead-acid batteries with capacities ranging from 3 Ah to 250 Ah, including AGM, GEL, and EFB models, making it suitable for use in many types of vehicles. It enables the measurement of voltage and internal resistance, as well as the assessment of battery capacity and condition, allowing for the quick detection of potential issues. Additionally, the tester performs starting and charging system tests for 12 V and 24 V systems, expanding the diagnostic capabilities. The built-in printer and USB connectivity allow for the creation and archiving of measurement reports, which facilitates the documentation of results and daily work in a workshop or service center.
Included
- Battery tester
- USB cable
- Thermal paper roll (for printer)
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT675A |
| Product type | Battery tester with built-in printer |
| Battery voltage testing range | 7–16 V DC |
| Starting system test | 12 V / 24 V |
| Charging system test | 12 V / 24 V |
| Supported battery types | Lead-acid, AGM, GEL, EFB |
| Battery capacity range | 3–250 Ah |
| Test standards | CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, AH |
| Measured parameters | Voltage, resistance, capacity, cycle life |
| Connectivity | USB |
| Built-in printer | Yes |
| Display type | 128 × 64 LCD display |
| Power supply | From the tested vehicle battery |
| Dimensions | 95 × 47 × 183 mm |
| Weight | 413 g |
| Certifications | CE, UKCA, FCC |
