Uni-T UT207B Digital Clamp Meter
In stock

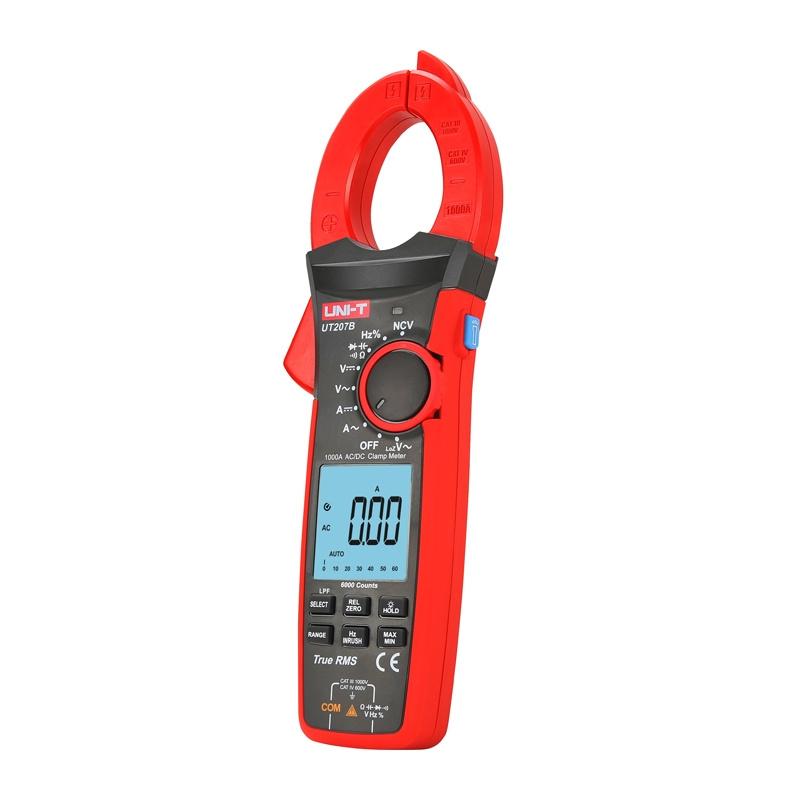

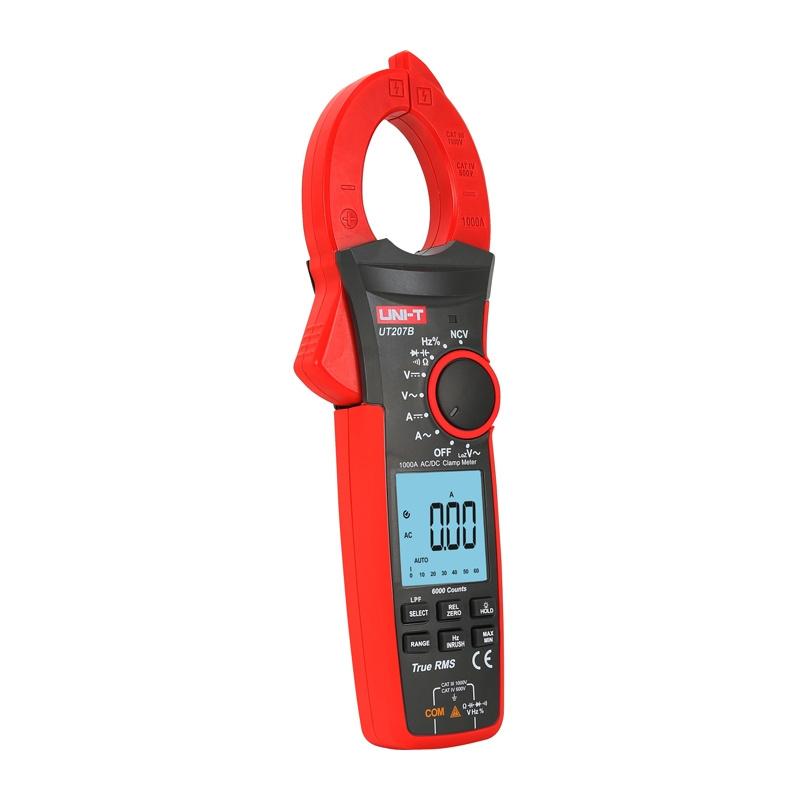

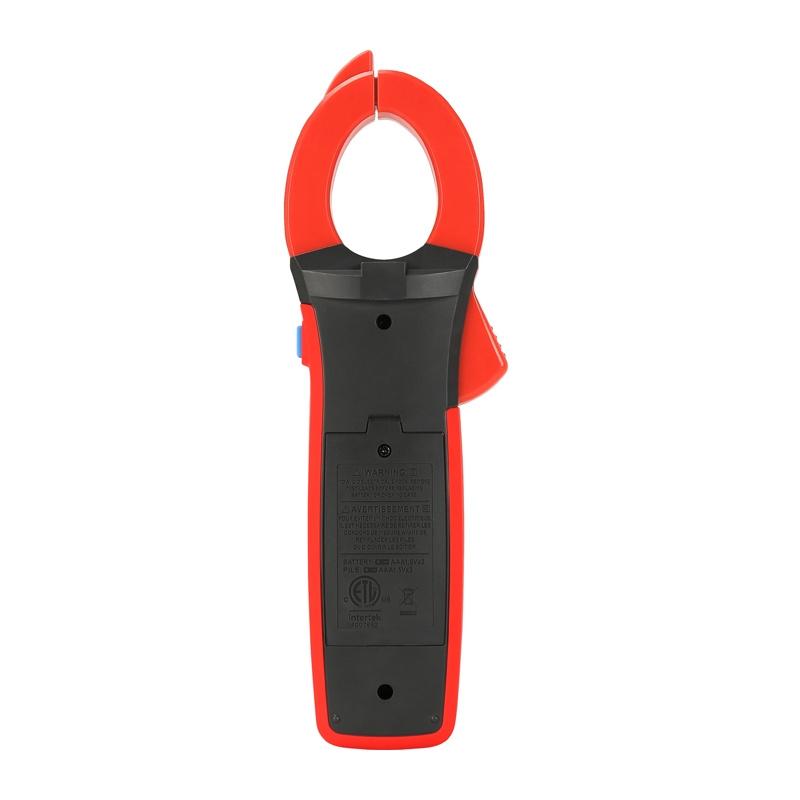

Uni-T UT207B Digital Clamp Meter
The Uni-T UT207B digital clamp meter is a versatile tool for working with electrical installations and diagnosing equipment. Thanks to its clamp design, it allows for quick current measurement without opening the circuit, which significantly facilitates work in the field and at switchgear panels.
Features that make work easier
The UT207B model was designed for the most demanding applications, enabling precise measurement of AC and DC current up to 1000A and AC/DC voltage up to 1000V. Thanks to a wide range of electrical parameters and advanced features such as True RMS, Zero mode, NCV, and LPF and LoZ filters, the device guarantees the highest accuracy of results even in difficult conditions. Additionally, the built-in inrush current measurement function allows for detailed analysis of transient loads.
Intuitive Design and Safety
A large bargraph display and robust construction ensure ease of use. The device complies with CAT III 1000V / CAT IV 600V standards.
Included
- Clamp meter
- Batteries x3
- Test leads
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT207B |
| Type | True RMS clamp meter |
| AC current | 1000A ±(2%+5) |
| DC current | 1000A ±(2%+5) |
| Inrush current | 1000A ±(10%+10) |
| AC voltage | 1000V ±(1.2%+3) |
| DC voltage | 1000V ±(0.5%+5) |
| LPF ACV | 1000V ±(2%+5) |
| LoZ ACV | 1000V ±(2%+5) |
| AC voltage range | 40Hz ~ 400Hz |
| Resistance | 60MΩ ±(1%+2) |
| Capacitance | 60mF ±(4%+5) |
| Frequency | 10Hz ~ 1MHz ±(0.1%+3) |
| Duty cycle | 10% ~ 90% ±(2.6%+7) |
| Maximum reading | 6000 |
| Functions | True RMS, NCV, LPF, LoZ, Zero mode, inrush current measurement, bargraph |
| Jaw opening | 42 mm |
| Power supply | 3x 1.5V battery (R03) |
| Display | 43 x 45 mm |
| Dimensions | 272 x 81 x 43.5 mm |
| Weight | 420 g |
| Safety | CAT III 1000V / CAT IV 600V |
| Certifications | CE, UKCA, cETLus |
Product description
Uni-T UT207B Digital Clamp Meter
The Uni-T UT207B digital clamp meter is a versatile tool for working with electrical installations and diagnosing equipment. Thanks to its clamp design, it allows for quick current measurement without opening the circuit, which significantly facilitates work in the field and at switchgear panels.
Features that make work easier
The UT207B model was designed for the most demanding applications, enabling precise measurement of AC and DC current up to 1000A and AC/DC voltage up to 1000V. Thanks to a wide range of electrical parameters and advanced features such as True RMS, Zero mode, NCV, and LPF and LoZ filters, the device guarantees the highest accuracy of results even in difficult conditions. Additionally, the built-in inrush current measurement function allows for detailed analysis of transient loads.
Intuitive Design and Safety
A large bargraph display and robust construction ensure ease of use. The device complies with CAT III 1000V / CAT IV 600V standards.
Included
- Clamp meter
- Batteries x3
- Test leads
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT207B |
| Type | True RMS clamp meter |
| AC current | 1000A ±(2%+5) |
| DC current | 1000A ±(2%+5) |
| Inrush current | 1000A ±(10%+10) |
| AC voltage | 1000V ±(1.2%+3) |
| DC voltage | 1000V ±(0.5%+5) |
| LPF ACV | 1000V ±(2%+5) |
| LoZ ACV | 1000V ±(2%+5) |
| AC voltage range | 40Hz ~ 400Hz |
| Resistance | 60MΩ ±(1%+2) |
| Capacitance | 60mF ±(4%+5) |
| Frequency | 10Hz ~ 1MHz ±(0.1%+3) |
| Duty cycle | 10% ~ 90% ±(2.6%+7) |
| Maximum reading | 6000 |
| Functions | True RMS, NCV, LPF, LoZ, Zero mode, inrush current measurement, bargraph |
| Jaw opening | 42 mm |
| Power supply | 3x 1.5V battery (R03) |
| Display | 43 x 45 mm |
| Dimensions | 272 x 81 x 43.5 mm |
| Weight | 420 g |
| Safety | CAT III 1000V / CAT IV 600V |
| Certifications | CE, UKCA, cETLus |
