Uni-T UT202BT Smart Clamp Meter
In stock

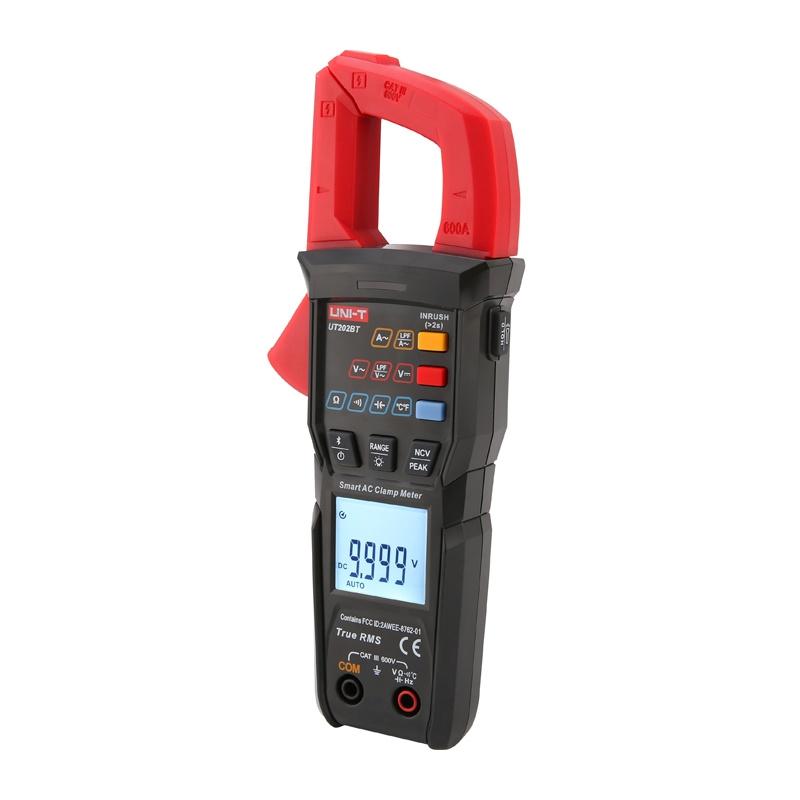

Uni-T UT202BT Smart Clamp Meter
The Uni-T UT202BT is a modern clamp meter designed for quick and convenient electrical measurements without the need to open the circuit. Its compact design and one-handed operation make it ideal for field work, installations, and daily maintenance tasks. The 28 mm jaw opening facilitates measurements in various types of installations.
Wide measurement range and practical features
The UT202BT model allows for the measurement of AC/DC voltage up to 600 V, AC current up to 600 A, resistance, capacitance, temperature, and AC frequency, making it ideal for diagnosing a wide range of electrical devices and systems. The True RMS function increases the accuracy of AC signal measurements, while automatic range switching, Data Hold, diode test, and continuity test improve the convenience of daily work.
Bluetooth and convenient operation in all conditions
A major advantage of the device is the Bluetooth module, which allows results to be sent to a mobile app for more convenient monitoring of measurements. The meter is also equipped with non-contact voltage detection (NCV), a backlit screen, and a built-in flashlight, making it easier to work in dimly lit areas. Auto-off, low battery indicator, and compliance with safety categories CAT II 600V / CAT III 300V enhance comfort and safety of use.

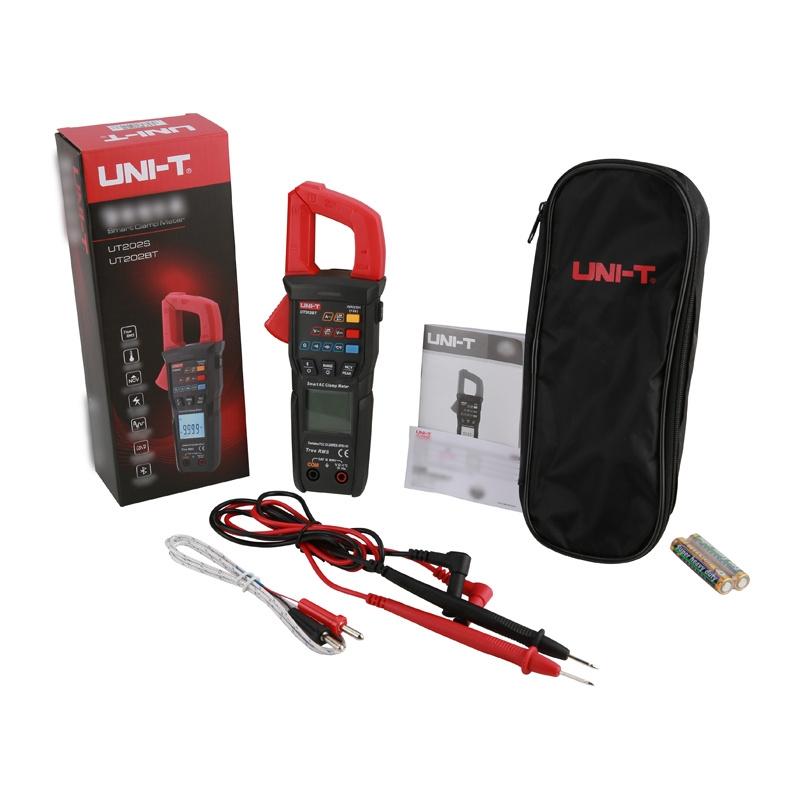

Included
- Clamp meter
- Test leads
- Thermocouple
- 2 AAA batteries
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT202BT |
| Type | Smart clamp meter |
| AC current | 600A ±(2%+5) |
| AC frequency | 50Hz~60Hz ±(1%+5) |
| AC voltage | 600V ±(0.8%+5) |
| DC Voltage | 600V ±(0.5%+2) |
| Resistance | 60MΩ ±(0.8%+2) |
| Capacitance | 100mF ±(4%+5) |
| Temperature | -40°C~1000°C / -40°F~1832°F ±(1.5%+5) |
| Maximum reading | 6000 |
| True RMS | Yes |
| Bluetooth | Yes |
| Range switching | Automatic |
| Functions | NCV, diode test, continuity test, Data Hold, flashlight, LCD backlight, auto power off, low battery indicator, low-pass filter, inrush current detection, Peak Hold |
| Dual reading | V+Hz, A+Hz |
| Jaw opening | 28 mm |
| Power supply | 2x 1.5V battery (AAA) |
| Safety | CAT II 600V / CAT III 300V |
| Display dimensions | 37 mm x 25 mm |
| Weight | 248 g |
| Dimensions | 201 mm x 63.5 mm x 35 mm |
| Color | Red and gray |
| Certifications | CE, UKCA, cETLus |
Product description
Uni-T UT202BT Smart Clamp Meter
The Uni-T UT202BT is a modern clamp meter designed for quick and convenient electrical measurements without the need to open the circuit. Its compact design and one-handed operation make it ideal for field work, installations, and daily maintenance tasks. The 28 mm jaw opening facilitates measurements in various types of installations.
Wide measurement range and practical features
The UT202BT model allows for the measurement of AC/DC voltage up to 600 V, AC current up to 600 A, resistance, capacitance, temperature, and AC frequency, making it ideal for diagnosing a wide range of electrical devices and systems. The True RMS function increases the accuracy of AC signal measurements, while automatic range switching, Data Hold, diode test, and continuity test improve the convenience of daily work.
Bluetooth and convenient operation in all conditions
A major advantage of the device is the Bluetooth module, which allows results to be sent to a mobile app for more convenient monitoring of measurements. The meter is also equipped with non-contact voltage detection (NCV), a backlit screen, and a built-in flashlight, making it easier to work in dimly lit areas. Auto-off, low battery indicator, and compliance with safety categories CAT II 600V / CAT III 300V enhance comfort and safety of use.
Included
- Clamp meter
- Test leads
- Thermocouple
- 2 AAA batteries
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT202BT |
| Type | Smart clamp meter |
| AC current | 600A ±(2%+5) |
| AC frequency | 50Hz~60Hz ±(1%+5) |
| AC voltage | 600V ±(0.8%+5) |
| DC Voltage | 600V ±(0.5%+2) |
| Resistance | 60MΩ ±(0.8%+2) |
| Capacitance | 100mF ±(4%+5) |
| Temperature | -40°C~1000°C / -40°F~1832°F ±(1.5%+5) |
| Maximum reading | 6000 |
| True RMS | Yes |
| Bluetooth | Yes |
| Range switching | Automatic |
| Functions | NCV, diode test, continuity test, Data Hold, flashlight, LCD backlight, auto power off, low battery indicator, low-pass filter, inrush current detection, Peak Hold |
| Dual reading | V+Hz, A+Hz |
| Jaw opening | 28 mm |
| Power supply | 2x 1.5V battery (AAA) |
| Safety | CAT II 600V / CAT III 300V |
| Display dimensions | 37 mm x 25 mm |
| Weight | 248 g |
| Dimensions | 201 mm x 63.5 mm x 35 mm |
| Color | Red and gray |
| Certifications | CE, UKCA, cETLus |
