Uni-T UT18D Voltage and Continuity Tester
In stock

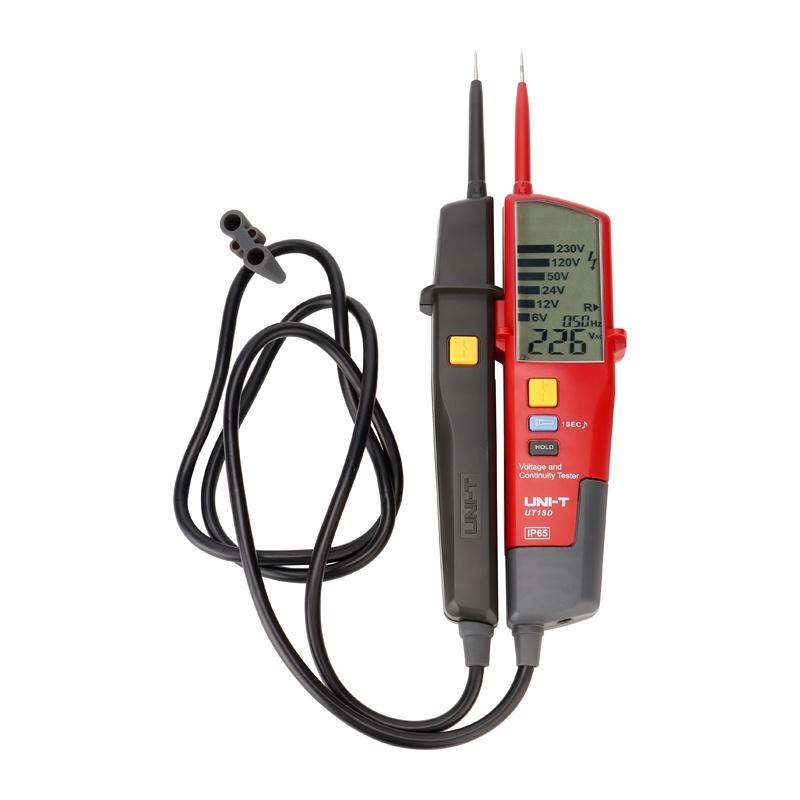

Uni-T UT18D voltage and continuity tester
The Uni-T UT18D is the most feature-rich voltage and continuity tester in the UT18 series, designed for diagnosing electrical installations in demanding operating conditions. The device allows for AC/DC voltage measurement in the range of 6 V to 690 V, frequency measurement from 40 Hz to 400 Hz, circuit continuity testing with audible and LED indicators, detection of positive and negative polarity, phase sequence testing, and voltage detection with a single probe. The model is equipped with a large, backlit LCD display measuring 73.5 × 35.5 mm, which improves the readability of results, while additional features such as RCD testing, self-test, silent mode, auto-standby, flashlight, and low-battery indicator streamline daily installation and maintenance work. The robust construction, compliant with IP65 and CAT IV 600 V, ensures high durability and safety of use.
Included
- Voltage and continuity tester
- 2 AAA batteries
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT18D |
| Product type | Voltage and continuity tester |
| Voltage display | LCD |
| LCD backlight | Yes |
| Voltage range | 6 V (5 V ± 1 V), 12 V (8 V ± 1 V), 24 V (18 V ± 2 V), 50 V (38 V ± 4 V), 120 V (94 V ± 8 V), 230 V (180 V ± 14 V), 400 V (325 V ± 15 V), 690 V (562 V ± 24 V) |
| LCD voltage range | 6–690 V |
| LCD frequency range | 40–400 Hz |
| LCD voltage accuracy | ±(1.5% + 5) |
| LCD frequency accuracy | ±(3% + 5) |
| LCD screen dimensions | 73.5 × 35.5 mm |
| Phase rotation test | 57–400 V AC, 3-phase, 50–400 Hz |
| Single-wire L2 voltage detection | 100–690 V, 50–400 Hz |
| Continuity test | 0 Ω – 100 kΩ |
| Continuity test accuracy | +50% |
| Continuity test indication | Buzzer and LED |
| RCD test | 230 V, 50–400 Hz |
| Polarity detection | Positive and negative |
| Self-test | Yes |
| Test without power | No |
| Overvoltage protection | 713–788 V |
| Silent mode | Yes |
| Auto standby | Yes |
| Flashlight | Yes |
| Low battery indicator | Yes |
| Ingress protection | IP65 |
| Measurement category | CAT IV 600 V |
| Power supply | 2 × 1.5 V (R03) |
| Weight | 280 g |
| Dimensions | 272 × 85 × 31 mm |
| Color | Red and gray |
Product description
Uni-T UT18D voltage and continuity tester
The Uni-T UT18D is the most feature-rich voltage and continuity tester in the UT18 series, designed for diagnosing electrical installations in demanding operating conditions. The device allows for AC/DC voltage measurement in the range of 6 V to 690 V, frequency measurement from 40 Hz to 400 Hz, circuit continuity testing with audible and LED indicators, detection of positive and negative polarity, phase sequence testing, and voltage detection with a single probe. The model is equipped with a large, backlit LCD display measuring 73.5 × 35.5 mm, which improves the readability of results, while additional features such as RCD testing, self-test, silent mode, auto-standby, flashlight, and low-battery indicator streamline daily installation and maintenance work. The robust construction, compliant with IP65 and CAT IV 600 V, ensures high durability and safety of use.
Included
- Voltage and continuity tester
- 2 AAA batteries
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT18D |
| Product type | Voltage and continuity tester |
| Voltage display | LCD |
| LCD backlight | Yes |
| Voltage range | 6 V (5 V ± 1 V), 12 V (8 V ± 1 V), 24 V (18 V ± 2 V), 50 V (38 V ± 4 V), 120 V (94 V ± 8 V), 230 V (180 V ± 14 V), 400 V (325 V ± 15 V), 690 V (562 V ± 24 V) |
| LCD voltage range | 6–690 V |
| LCD frequency range | 40–400 Hz |
| LCD voltage accuracy | ±(1.5% + 5) |
| LCD frequency accuracy | ±(3% + 5) |
| LCD screen dimensions | 73.5 × 35.5 mm |
| Phase rotation test | 57–400 V AC, 3-phase, 50–400 Hz |
| Single-wire L2 voltage detection | 100–690 V, 50–400 Hz |
| Continuity test | 0 Ω – 100 kΩ |
| Continuity test accuracy | +50% |
| Continuity test indication | Buzzer and LED |
| RCD test | 230 V, 50–400 Hz |
| Polarity detection | Positive and negative |
| Self-test | Yes |
| Test without power | No |
| Overvoltage protection | 713–788 V |
| Silent mode | Yes |
| Auto standby | Yes |
| Flashlight | Yes |
| Low battery indicator | Yes |
| Ingress protection | IP65 |
| Measurement category | CAT IV 600 V |
| Power supply | 2 × 1.5 V (R03) |
| Weight | 280 g |
| Dimensions | 272 × 85 × 31 mm |
| Color | Red and gray |
