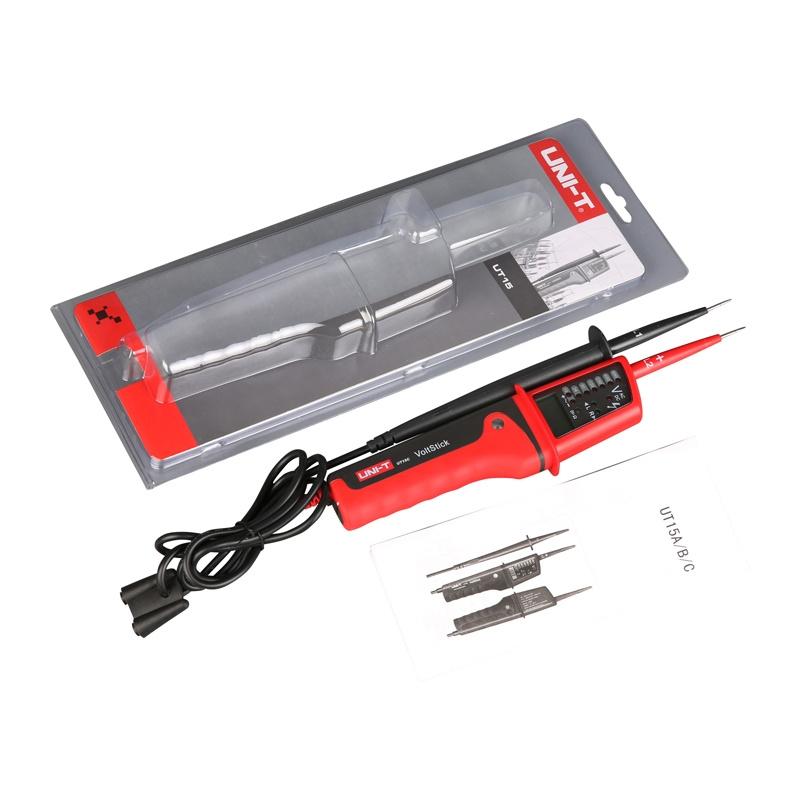

Uni-T UT15C voltage and continuity tester
The Uni-T UT15C is a voltage and continuity tester equipped with both easy-to-read LED indicators and an LCD display, which allows for more accurate readings of AC/DC voltage in the range from 24 V to 690 V. The device supports voltage measurements up to 690 V, automatic range switching, circuit continuity testing with an audible signal and LED, detection of positive and negative polarity, phase rotation testing, and single-probe voltage detection. The built-in flashlight facilitates work in dimly lit areas, and the compact design, measuring 275 × 51 × 30 mm and weighing 210 g, is ideal for daily diagnostics and service work.
Included
- Voltage and continuity tester
- 2 AAA batteries
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT15C |
| Product type | Voltage and continuity tester |
| AC/DC LED voltage indicator | Yes |
| LED voltage indicator range | 12–690 V |
| LCD display | Yes |
| LCD display range | 24–690 V |
| LCD display accuracy | ±(3% + 5) |
| Phase rotation test | Yes |
| Phase rotation test range | 0–690 V, 50–60 Hz |
| Single-probe voltage detection (L2) | Yes |
| Single-probe voltage detection range | 0–690 V, 50–400 Hz |
| Circuit continuity test | Yes |
| Continuity test range | 0–100 kΩ |
| Continuity test indication | Audible signal + LED |
| Polarity detection | Yes |
| Type of polarity detection | Positive and negative |
| Protection class | IP65 |
| Range switching | Automatic |
| Flashlight | Yes |
| Battery indicator | Yes |
| LCD screen dimensions | 23 × 12 mm |
| Power supply | 2 × 1.5 V (R03) |
| Weight | 210 g |
| Dimensions | 275 × 51 × 30 mm |
| Color | Red and gray |
Product description
Uni-T UT15C voltage and continuity tester
The Uni-T UT15C is a voltage and continuity tester equipped with both easy-to-read LED indicators and an LCD display, which allows for more accurate readings of AC/DC voltage in the range from 24 V to 690 V. The device supports voltage measurements up to 690 V, automatic range switching, circuit continuity testing with an audible signal and LED, detection of positive and negative polarity, phase rotation testing, and single-probe voltage detection. The built-in flashlight facilitates work in dimly lit areas, and the compact design, measuring 275 × 51 × 30 mm and weighing 210 g, is ideal for daily diagnostics and service work.
Included
- Voltage and continuity tester
- 2 AAA batteries
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT15C |
| Product type | Voltage and continuity tester |
| AC/DC LED voltage indicator | Yes |
| LED voltage indicator range | 12–690 V |
| LCD display | Yes |
| LCD display range | 24–690 V |
| LCD display accuracy | ±(3% + 5) |
| Phase rotation test | Yes |
| Phase rotation test range | 0–690 V, 50–60 Hz |
| Single-probe voltage detection (L2) | Yes |
| Single-probe voltage detection range | 0–690 V, 50–400 Hz |
| Circuit continuity test | Yes |
| Continuity test range | 0–100 kΩ |
| Continuity test indication | Audible signal + LED |
| Polarity detection | Yes |
| Type of polarity detection | Positive and negative |
| Protection class | IP65 |
| Range switching | Automatic |
| Flashlight | Yes |
| Battery indicator | Yes |
| LCD screen dimensions | 23 × 12 mm |
| Power supply | 2 × 1.5 V (R03) |
| Weight | 210 g |
| Dimensions | 275 × 51 × 30 mm |
| Color | Red and gray |
