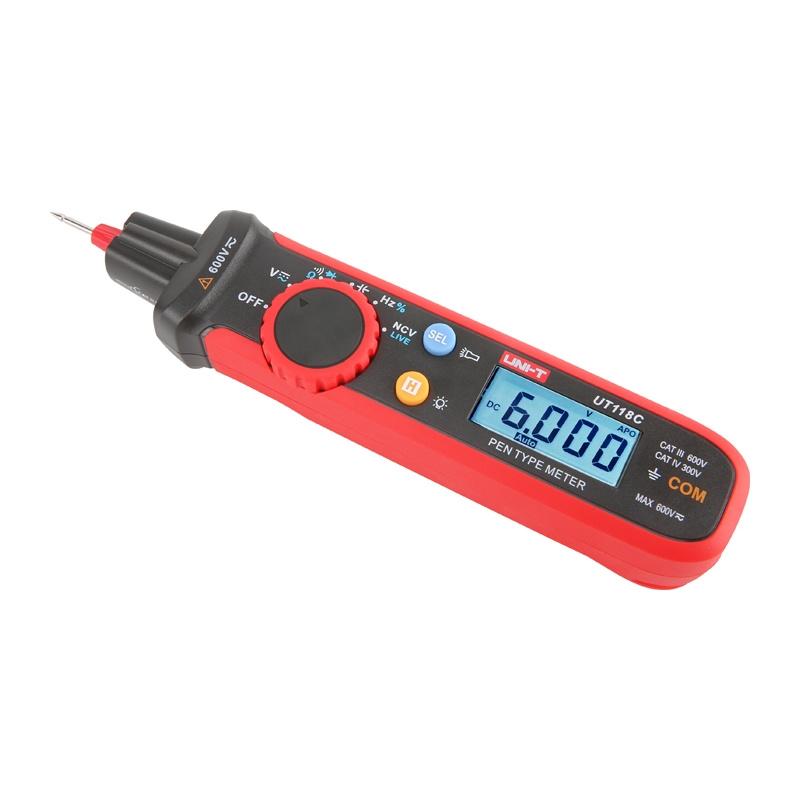

Uni-T UT118C pen-style digital multimeter

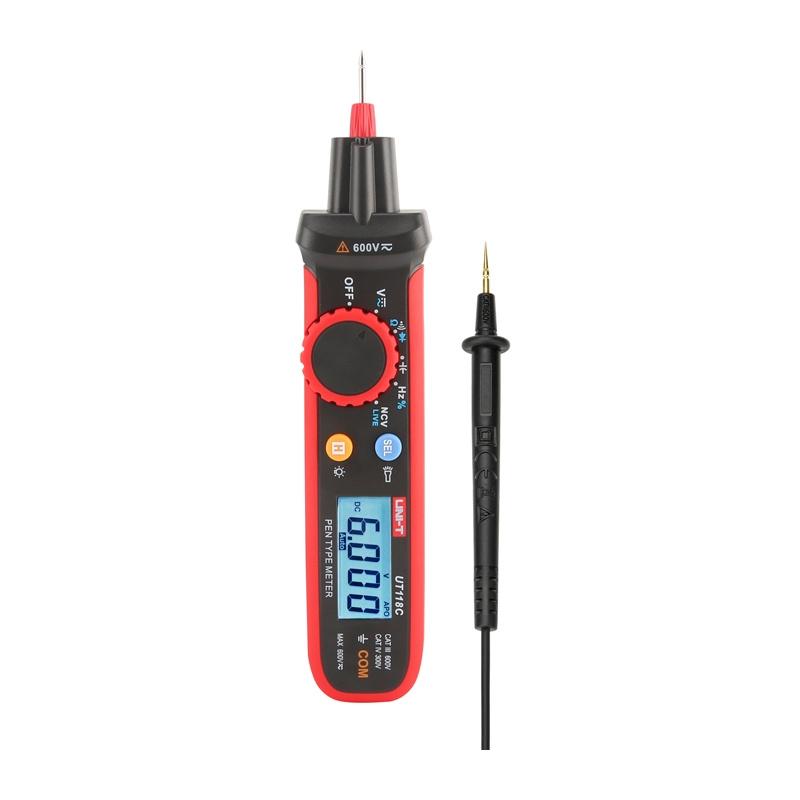

The Uni-T UT118C is a lightweight and durable pen-style multimeter that combines a compact design with accurate True RMS measurement. The device measures AC/DC voltage up to 600 V, resistance up to 60 MΩ, capacitance up to 60 mF, and frequency up to 999.9 kHz, making it ideal for home appliance repairs and hobby projects. An additional advantage is the gold-plated test leads with a special tip, which enhance comfort and safety during use.
Wide measurement range and user-friendly operation
The UT118C model features a 6000-count display and automatic range switching, which simplifies daily work and speeds up measurements. The device automatically detects diodes, continuity, and resistance, and also offers an NCV function and a LIVE phase wire test. It also features a flashlight, a backlit HTN LCD screen, duty cycle measurement, and a two-color indicator, which improve usability in various conditions.
Compact design and safe operation
The multimeter features a two-color injection-molded construction, which increases the durability of the housing. The two-step adjustment of the probe length allows for better adaptation of the device to the type of work being performed. The model complies with CAT III 600V and CAT IV 300V standards, and its single AAA battery power supply makes it a convenient tool for quick measurements at home and in the workshop.

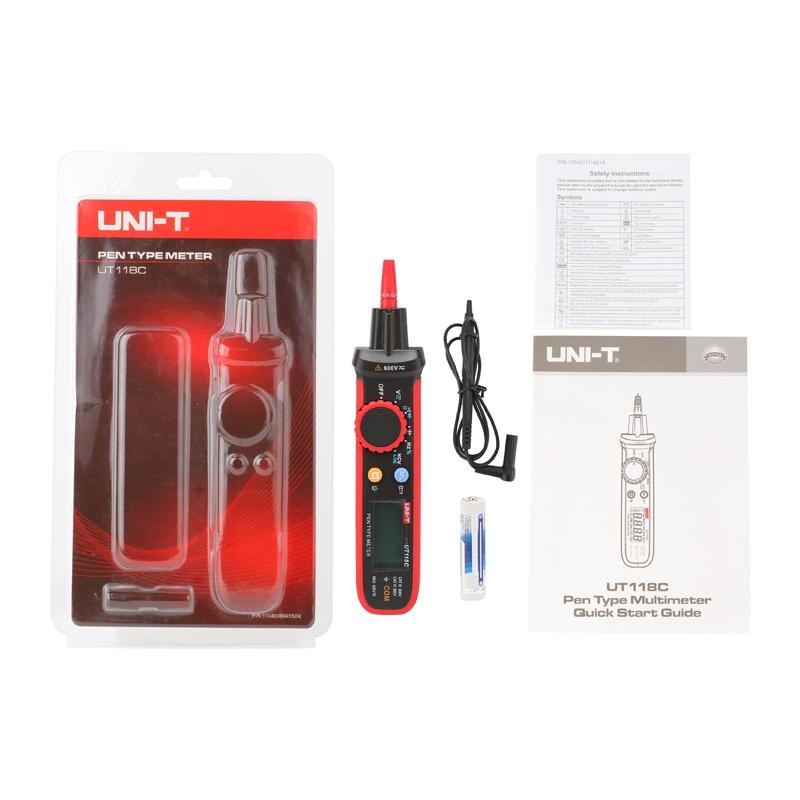

Included
- Digital multimeter
- 1 AAA battery
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT118C |
| Product type | Pen-style digital multimeter |
| DC voltage range | 6.000 V / 60.00 V / 600.0 V ±(1% + 3) |
| AC voltage range | 6.000 V / 60.00 V / 600.0 V ±(1% + 4) |
| Resistance measurement range | 600.0 Ω / 6.000 kΩ / 60.00 kΩ / 600.0 kΩ ±(1% + 3), 6.000 MΩ ±(1.5% + 5), 60.00 MΩ ±(2.5% + 5) |
| Capacitance measurement range | 600.0 nF / 6.000 µF / 60.00 µF / 600.0 µF ±(3.5% + 8), 6.000 mF ±(5.0% + 9), 60.00 mF ±(10.0% + 9) |
| Frequency range | 99.99 Hz / 999.9 Hz / 9.999 kHz / 99.99 kHz / 999.9 kHz ±(0.01% + 5) |
| Maximum display reading | 6000 |
| Functions | Automatic range switching, automatic LED, continuity, and resistance detection, NCV, LIVE test, LED and continuity test, flashlight, duty cycle measurement, dual-color indicator, True RMS, screen backlight, HTN LCD display |
| Duty cycle range | 0.1% – 99.9% |
| Display dimensions | 36 × 15 mm |
| Probe length adjustment | Two-step |
| Measurement category | CAT III 600V / CAT IV 300V |
| Power supply | 1 × 1.5 V AAA battery |
| Dimensions | 182.5 × 38.0 × 38.5 mm |
| Color | Gray and red |
| Certifications | CE, cETLus, RoHS |
Product description
Uni-T UT118C pen-style digital multimeter
The Uni-T UT118C is a lightweight and durable pen-style multimeter that combines a compact design with accurate True RMS measurement. The device measures AC/DC voltage up to 600 V, resistance up to 60 MΩ, capacitance up to 60 mF, and frequency up to 999.9 kHz, making it ideal for home appliance repairs and hobby projects. An additional advantage is the gold-plated test leads with a special tip, which enhance comfort and safety during use.
Wide measurement range and user-friendly operation
The UT118C model features a 6000-count display and automatic range switching, which simplifies daily work and speeds up measurements. The device automatically detects diodes, continuity, and resistance, and also offers an NCV function and a LIVE phase wire test. It also features a flashlight, a backlit HTN LCD screen, duty cycle measurement, and a two-color indicator, which improve usability in various conditions.
Compact design and safe operation
The multimeter features a two-color injection-molded construction, which increases the durability of the housing. The two-step adjustment of the probe length allows for better adaptation of the device to the type of work being performed. The model complies with CAT III 600V and CAT IV 300V standards, and its single AAA battery power supply makes it a convenient tool for quick measurements at home and in the workshop.
Included
- Digital multimeter
- 1 AAA battery
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT118C |
| Product type | Pen-style digital multimeter |
| DC voltage range | 6.000 V / 60.00 V / 600.0 V ±(1% + 3) |
| AC voltage range | 6.000 V / 60.00 V / 600.0 V ±(1% + 4) |
| Resistance measurement range | 600.0 Ω / 6.000 kΩ / 60.00 kΩ / 600.0 kΩ ±(1% + 3), 6.000 MΩ ±(1.5% + 5), 60.00 MΩ ±(2.5% + 5) |
| Capacitance measurement range | 600.0 nF / 6.000 µF / 60.00 µF / 600.0 µF ±(3.5% + 8), 6.000 mF ±(5.0% + 9), 60.00 mF ±(10.0% + 9) |
| Frequency range | 99.99 Hz / 999.9 Hz / 9.999 kHz / 99.99 kHz / 999.9 kHz ±(0.01% + 5) |
| Maximum display reading | 6000 |
| Functions | Automatic range switching, automatic LED, continuity, and resistance detection, NCV, LIVE test, LED and continuity test, flashlight, duty cycle measurement, dual-color indicator, True RMS, screen backlight, HTN LCD display |
| Duty cycle range | 0.1% – 99.9% |
| Display dimensions | 36 × 15 mm |
| Probe length adjustment | Two-step |
| Measurement category | CAT III 600V / CAT IV 300V |
| Power supply | 1 × 1.5 V AAA battery |
| Dimensions | 182.5 × 38.0 × 38.5 mm |
| Color | Gray and red |
| Certifications | CE, cETLus, RoHS |
