1" AC Electronic Irrigation Valve
In stock

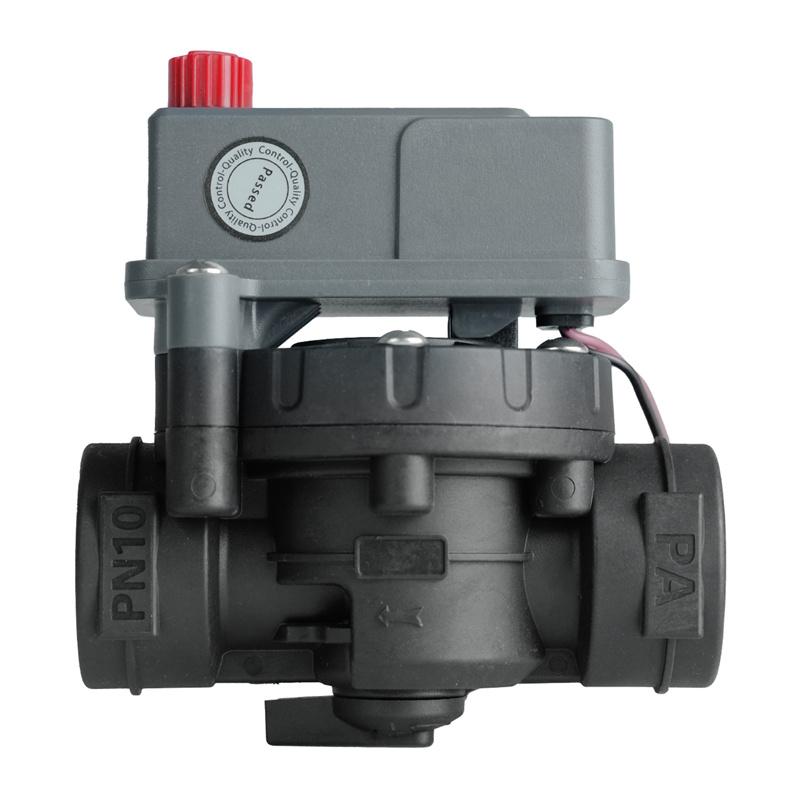

1" AC/DC Electronic Irrigation Valve
Ensure precise control of water flow in your irrigation system with the RainPoint 1” AC solenoid valve. The device operates on 24 V AC/DC, offering stable performance and fast response times thanks to a 250 mA inrush current and 15 mA holding current. A wide operating pressure range of 0.2–10 bar and a sealed IP68 design make the valve ideal for demanding installation conditions.
Stable and efficient flow control
The valve can operate on both 24 V AC and 24 V DC, providing great flexibility in controller selection. This allows you to easily adapt it to an existing irrigation system or a new installation without being limited to a single power supply standard.
Compatibility with standard installations
The model is equipped with a 1” BSP connection, allowing for easy integration with popular irrigation systems. The standard thread enables quick installation and trouble-free connection to an existing garden system.
Durability in harsh conditions
The IP68-rated design ensures high resistance to moisture and water contact. The valve can operate at temperatures up to 60°C and across a wide pressure range, guaranteeing its durability and reliability even under intensive use.
| Manufacturer | RainPoint |
|---|---|
| Model | BIV025ESC-AC |
| Connection diameter | 1” |
| Operating voltage | 24 V AC/DC |
| Inrush current | 250 mA |
| Standby current | 15 mA |
| Operating pressure | 0.2–10 bar |
| Operating temperature | up to 60°C |
| Protection rating | IP68 |
Product description
1" AC/DC Electronic Irrigation Valve
Ensure precise control of water flow in your irrigation system with the RainPoint 1” AC solenoid valve. The device operates on 24 V AC/DC, offering stable performance and fast response times thanks to a 250 mA inrush current and 15 mA holding current. A wide operating pressure range of 0.2–10 bar and a sealed IP68 design make the valve ideal for demanding installation conditions.
Stable and efficient flow control
The valve can operate on both 24 V AC and 24 V DC, providing great flexibility in controller selection. This allows you to easily adapt it to an existing irrigation system or a new installation without being limited to a single power supply standard.
Compatibility with standard installations
The model is equipped with a 1” BSP connection, allowing for easy integration with popular irrigation systems. The standard thread enables quick installation and trouble-free connection to an existing garden system.
Durability in harsh conditions
The IP68-rated design ensures high resistance to moisture and water contact. The valve can operate at temperatures up to 60°C and across a wide pressure range, guaranteeing its durability and reliability even under intensive use.
| Manufacturer | RainPoint |
|---|---|
| Model | BIV025ESC-AC |
| Connection diameter | 1” |
| Operating voltage | 24 V AC/DC |
| Inrush current | 250 mA |
| Standby current | 15 mA |
| Operating pressure | 0.2–10 bar |
| Operating temperature | up to 60°C |
| Protection rating | IP68 |
